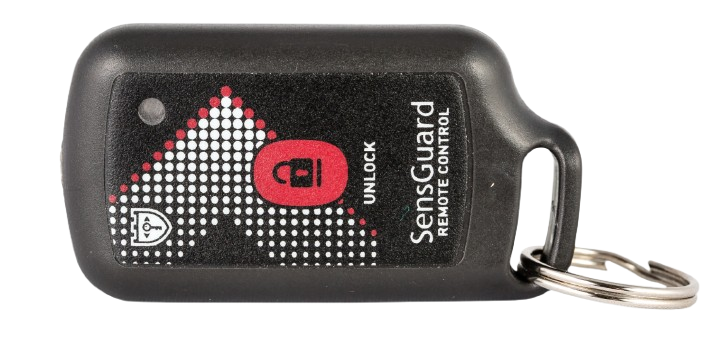

SensGuard RC1 Wireless Control Key
1. Description
SensMax SensGuard RC1 is a wireless alarm system control key fob designed for quick and safe arming and disarming of sensors. It is an integral part of the SensGuard security system, offering convenient remote control of up to 10 independent zones with multiple sensors in each zone.
This makes it an ideal solution for retail stores, jewelry salons, mobile phone shops, museums, and art galleries where staff need to regularly and promptly manage showcase security throughout the day.
2. How it works
With the RC1 key fob, arming and disarming wireless sensors is done with a simple push of a button. When activated, the sensors are disarmed, allowing staff to open a showcase, move a protected object, or access an exhibit.
The RC1 remote supports wireless communication up to 150m, and all data transmissions are securely protected by powerful AES-128 encryption to ensure uninterrupted operation and protection against interception or unauthorized access.
3. Advantages and key features
- Quick control: instant one-button arming and disarming for daily operations.
- Zone flexibility: supports control of up to 10 zones (up to 20 sensors in each zone).
- High security: encrypted AES-128 radio channel to prevent system tampering.
- Long battery life: up to 5 years of autonomous operation from a single built-in battery.
- Compact design: small ergonomic key fob format, convenient for staff to carry at all times.
- Completely wireless operation: requires no wires, ready to use immediately after pairing with the alarm receiver.
4. Application areas
- Retail showcases: access control to jewelry or expensive electronics with quick disarming and arming.
- Art galleries and museums: providing secure temporary access to protected art objects without disabling the entire security system.
- Windows and doors: managing alarm sensors on openings that are frequently used by staff.
- Multi-zone facilities: the ability to assign specific key fobs only for a specific zone or set up one master key for all zones at once.
5. Technical specifications
| Parameter | Value |
|---|---|
| Application | Security system for stores, showcase alarm, windows and doors, object protection in galleries |
| Supported devices | SensGuard VCNL4010 Wireless Security Sensor, SensGuard Alarm Receiver |
| Communication range | Up to 150m |
| Radio frequency | 868 MHz |
| Encryption | AES-128 (secure channel) |
| Control zones | Control up to 10 zones (up to 20 sensors in each zone) |
| Power supply | Built-in lithium battery, IEC86-4 safety standard (400 mAh, non-rechargeable) |
| Battery life | Up to 5 years |
| Dimensions | 65 × 35 × 17 mm |
6. Operating instructions
Using the remote control
To control the security zones, use the buttons on the key fob housing:
- Press the unlock button on the key fob before opening a showcase or moving an object to temporarily disarm the paired zone.
- After pressing the button, the user has 10 seconds to open each of the monitored showcases. If you need to open several showcases, you should press the button before each opening.
- During the unlock period, if more than one showcase is opened simultaneously, the system will immediately activate the alarm.
- After finishing work with the object, the system will automatically return to the armed mode. Zone bindings are configured on the central SensGuard Alarm Receiver.
Up to 10 independent control keys can be paired to each of the 10 control zones, allowing for flexible distribution of rights among store or museum staff.
7. Certificates and standard compliance
SensGuard RC1 is designed and manufactured in accordance with major regulatory standards:
- CE marking: Full compliance with applicable European Union directives.
- RoHS: Manufactured using environmentally friendly components without lead content.
8. Ordering information
The key fob works exclusively as part of the comprehensive SensGuard optical alarm system. Main system components:
| Model / SKU | Description |
|---|---|
| SensGuard VCNL4010 Wireless Security Sensor | Wireless optical security sensor (built-in battery) |
| SensGuard X1 Alarm Receiver | Central receiver supporting up to 10 independent control zones (up to 20 sensors per zone, up to 200 in total). Alerts with sound and light indication. |
| SensGuard RC1 Wireless Control Key | Compact remote control for locking/unlocking the system (up to 10 remote controls per control zone). |
