TAC-B Series Mounting Bracket

📥 Download PDF Instructions

General Description

The special bracket for outdoor installation of TAC-B 4G or TAC-B 3D-WP sensor on the pipe or wall.

Mounting Base Specifications

The primary mounting base is designed for secure installation directly onto walls or poles.

  • Application: Wall or pole mounting.
  • Base Width: 75 mm.
  • Structural Design: Features a 31 mm wide central U-shaped channel, ensuring stable positioning and anti-rotation lock when mounted on cylindrical surfaces.

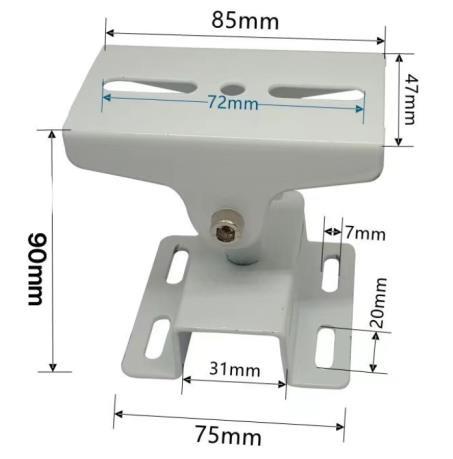

Figure 1. Primary mounting base


Sensor Mounting Adapters

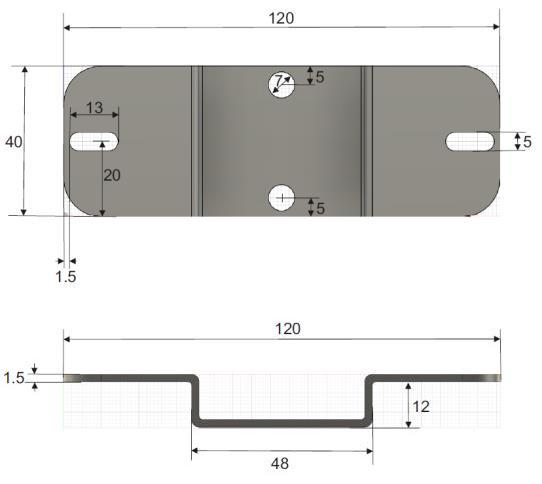

Figure 2. Sensor mounting adapter for TAC-B WP

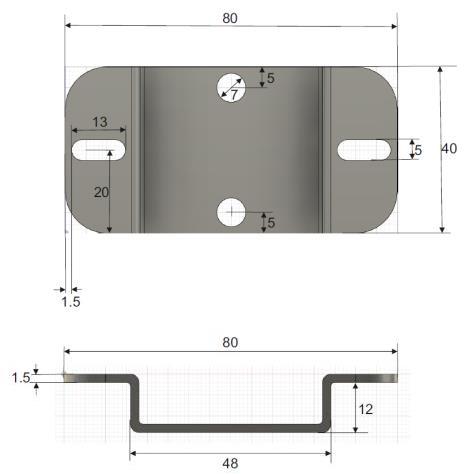

Figure 3. Sensor mounting adapter for TAC-B 4G

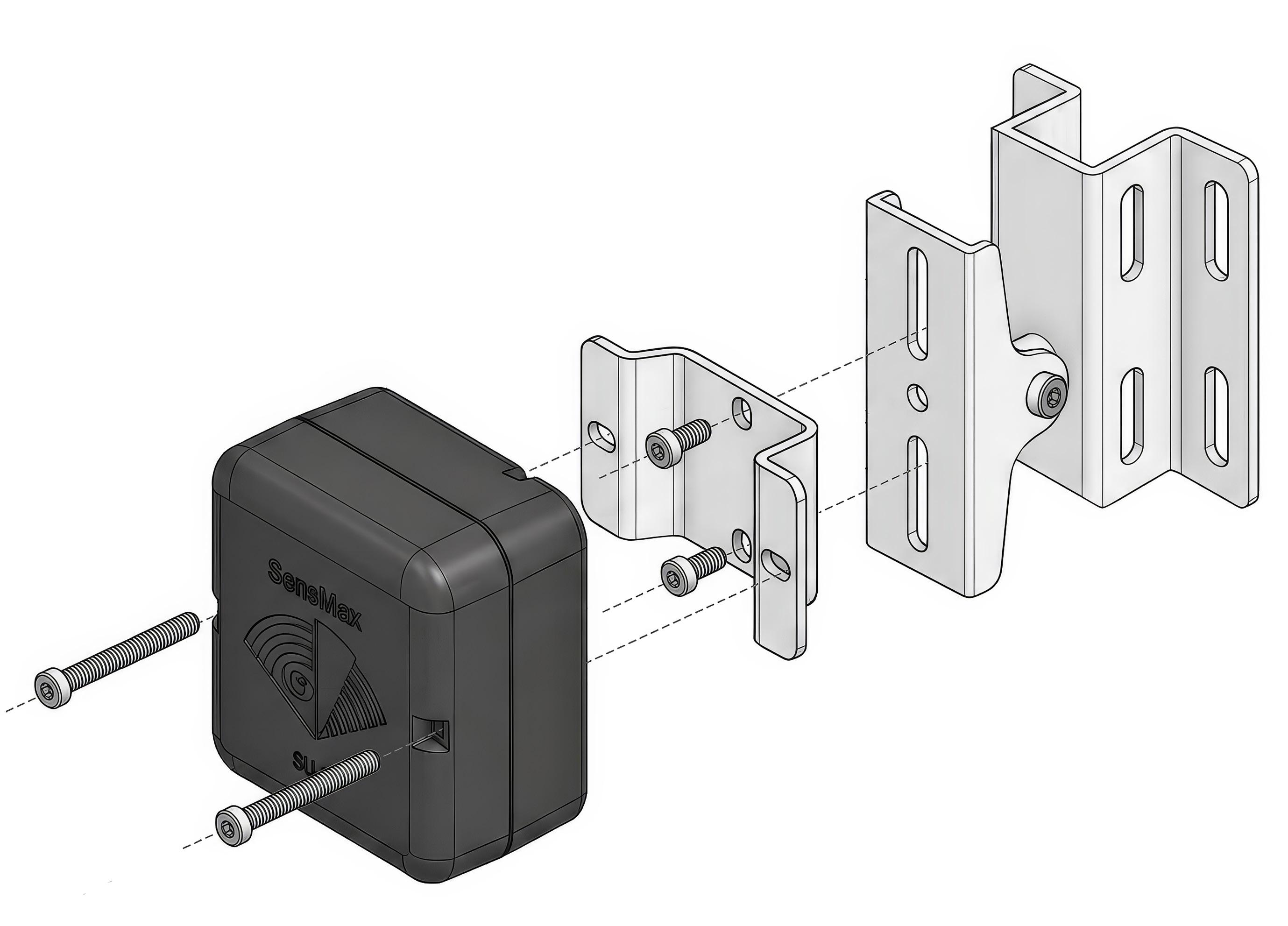

Installing the TAC-B 3D-WP / TAC-B 4G sensor onto the mounting bracket
