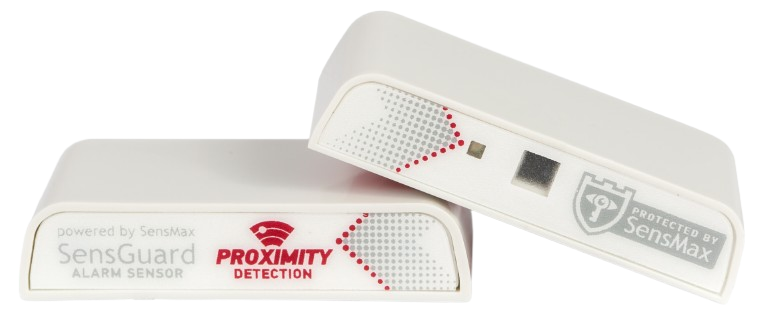

SensGuard VCNL4010 Optical Security Sensor
1. Description
The SensGuard VCNL4010 wireless optical security sensor is designed to protect objects from unauthorized touch, movement, or opening. It is perfectly suited for guarding paintings in museums and galleries, valuables in retail showcases, as well as doors and windows in restricted access areas.
Using innovative optical object control, the sensor continuously monitors the 20–30 mm zone in front of the object. At the slightest change in this distance, an instant alarm is triggered.
2. How it works
The sensor projects a short-range optical field onto the protected surface. If someone touches a painting, moves an exhibit, opens a window or a showcase — the monitored 20–30 mm zone is disturbed, and the event is instantly recorded.
The linked receiver activates a 90 dB acoustic alarm and turns on the light indicator for the corresponding zone so that staff can react immediately. Wireless communication at 868 MHz with AES-128 encryption provides reliable and interference-resistant transmission of alarm signals.
Installation requires no cables or drilling, and the built-in battery provides 24/7 monitoring without additional maintenance.
3. Advantages and key features
- Object-oriented protection: precise detection of unauthorized touch, opening, or movement in the 20–30 mm zone.
- Instant alerts: powerful 90 dB acoustic alarm with visual zone indication on the receiver.
- Encrypted wireless communication: secure AES-128 channel with a range of up to 150m for guaranteed delivery of notifications.
- 5-year battery life: an autonomous all-in-one solution for 24/7 continuous monitoring.
- Sabotage protection: the sensor has built-in protection against attempted magnetic and light manipulation.
- Compact design: an inconspicuous miniature housing that is easily hidden in galleries, behind showcases and window frames.
4. Application areas
- Showcase alarm: protection of jewelry, electronics, and luxury goods in retail stores.
- Window and door security: detection of unauthorized opening.
- Museum and gallery protection: reliable guarding of paintings, sculptures, and other valuable exhibits.
- Temporary exhibitions: portable and quick protection for fairs and pop-up events.
- Archives and storage facilities: tracking the movement of rare items and confidential materials.
5. Technical specifications
| Parameter | Value |
|---|---|
| Application | Showcase, door and window security, protection of paintings and museum exhibits, monitoring of object movement |
| Control principle | Optometric object control |
| Monitored zone | 20-30 mm |
| Communication range | Up to 150 m |
| Radio frequency | 868 MHz |
| Encryption | AES-128 (secure channel) |
| Alarm signal | 90 dB sound + visual zone indication (on the receiver side) |
| Power supply | Built-in lithium battery, IEC86-4 safety standard (400 mAh, non-rechargeable) |
| Battery life | Up to 5 years |
| Dimensions | 55 × 12 × 27 mm |
6. Operating instructions
Turning the sensor on and off
To prevent battery discharge during transport and storage, the sensor is shipped turned off.
- Turning on: Press and release the JOIN button (located on the housing). The red LED will light up for a second, confirming it is ready for operation.
- Turning off: Press and hold the JOIN button for 10 seconds.
7. Mounting options
The sensor is designed for quick installation without damaging surfaces:
- Double-sided tape: Wireless sensors are simply attached to the showcases, doors, or windows that need to be monitored. There is no need to pull wires or perform complex calibration. The sensor can be attached anywhere to monitor the most inaccessible objects.
[!NOTE] The sensor may have difficulty detecting movement if the monitored objects are dark or optically absorbing. In such cases, it is recommended to apply a reflective sticker to the moving part opposite the sensor's sensitive zone.
8. Certificates and standard compliance
SensGuard VCNL4010 is designed and manufactured in accordance with major regulatory standards:
- CE marking: Full compliance with applicable European Union directives.
- RoHS: Manufactured using environmentally friendly components without lead content.
9. Ordering information
The SensGuard optical alarm is a comprehensive solution. Below are the main components of the system:
| Model / SKU | Description |
|---|---|
| SensGuard VCNL4010 Wireless Security Sensor | Wireless optical security sensor (built-in battery) |
| SensGuard X1 Alarm Receiver | Central receiver supporting up to 10 independent control zones (up to 20 sensors per zone, up to 200 in total). Alerts with sound and light indication. |
| SensGuard RC1 Wireless Control Key | Compact remote control for locking/unlocking the system (up to 10 remote controls per control zone). |
